MENZEL MERCERIZING AND WASHING LINE
Specifications
| Model: | MENZEL MERCERIZING and WASHING LINE |
| Year of Construction: | 2018 / 2017 |
| Maximum Fabric Width: | 3200 mm |
| Minimum Fabric Width: | 500 mm |
| Roller Width: | 3400 mm |
| Maximum Coil Diameter: | 1800 mm |
| Fabric Type: | Woven fabric |
| Applied Chemicals: | NaOH 22 Degree Be or 28 Degree Be |
| Minimum Production Speed: | 5 m/min |
| Maximum Production Speed: | 50 m/min |
| Technical Speed: | 60 m/min |
| Number of Below Roller Lye Comp: | 10 |
| Number of Below Roller Stabilizing Comp: | 6 |
| Line Pressure Intermediate Padder: | 2500 dNewton |
| Roller Diameter (Intermediate Padder): | 400 mm |
| Line Pressure High Performance Padder: | 12000 dNewton |
| Roller Diameter (High Performance Padder): | 200 mm |
| Number of Padders: | 4 |
| Number of Rubber Rollers: | 18 |
| Number of Spare Rollers (Steel): | 10 |
| Automatic Lye Concentration Measuring: | Yes |
| Automatic Lye Dosing: | Yes |
| Washing Units Entry: | 2 |
| Washing Units Exit: | 4 |
The MENZEL MERCERIZING and WASHING LINE (2018 / 2017) is a high-performance solution for mercerizing and washing woven fabrics. With a maximum fabric width of 3200 mm and a minimum fabric width of 500 mm, this machine is versatile and suitable for various fabric types.

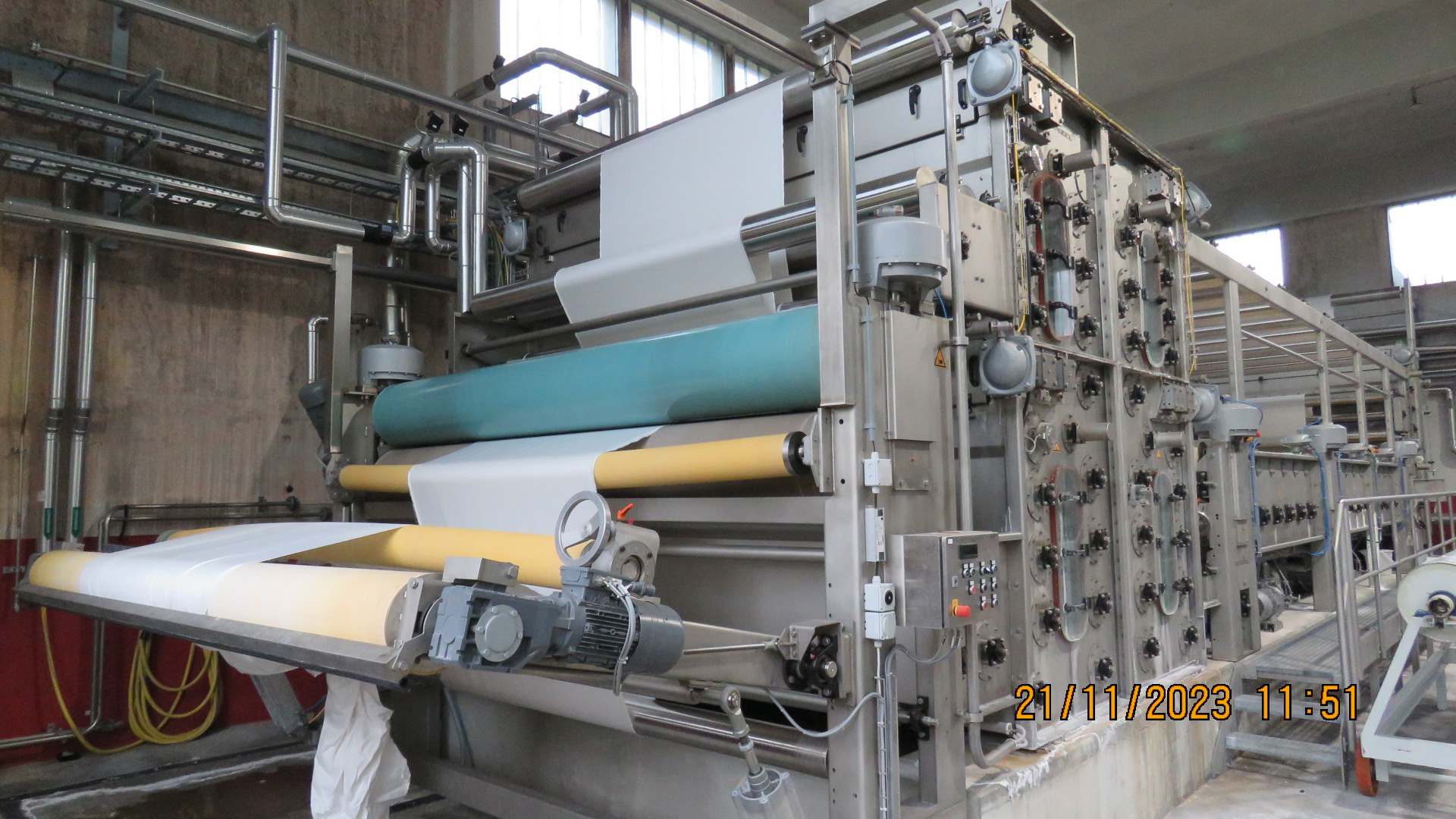

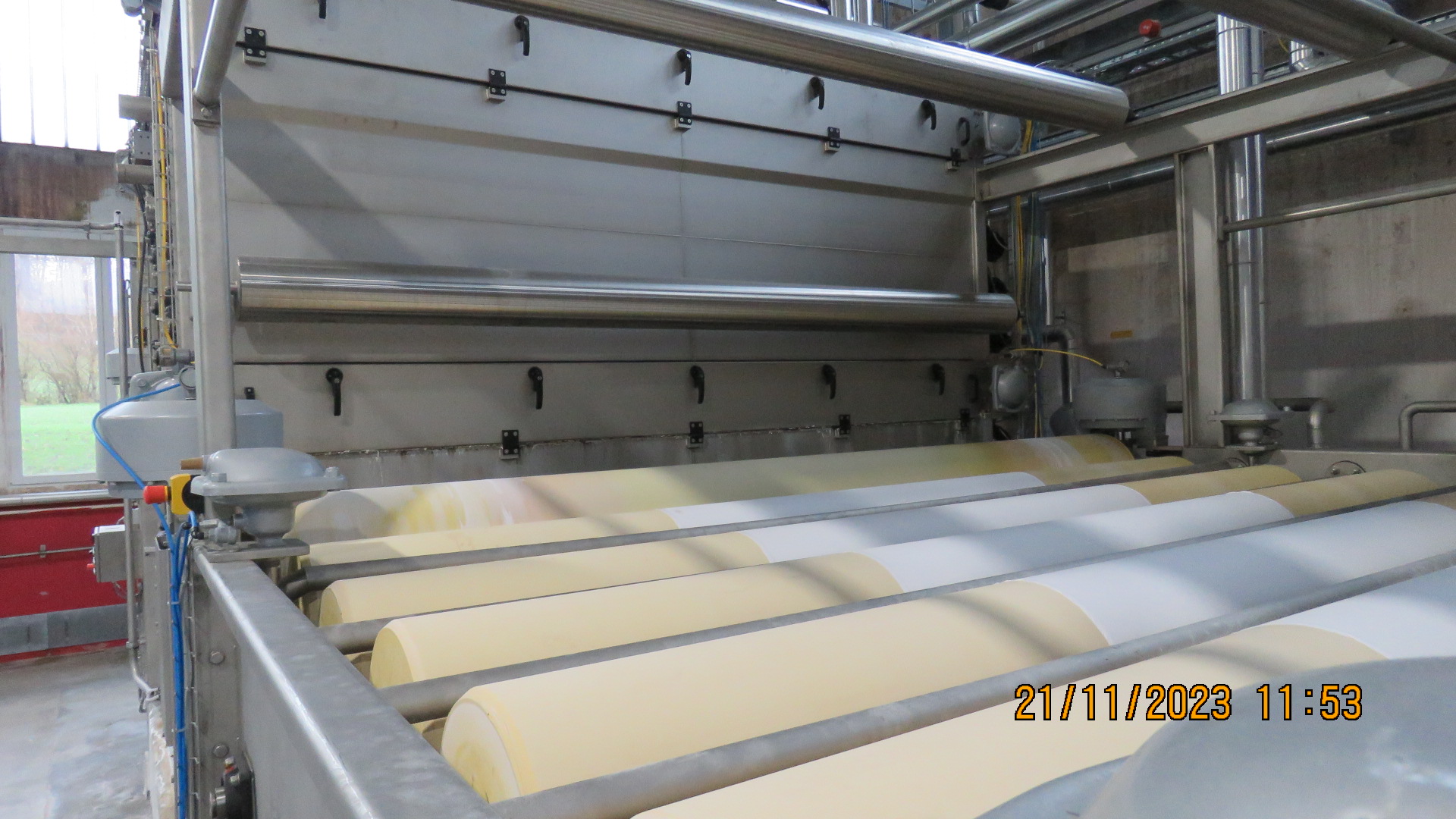

Equipped with 4 padders, 18 rubber rollers, and 10 spare steel rollers, this machine ensures efficient fabric treatment. The automatic lye concentration measuring and dosing systems provide precise chemical control for consistent results.

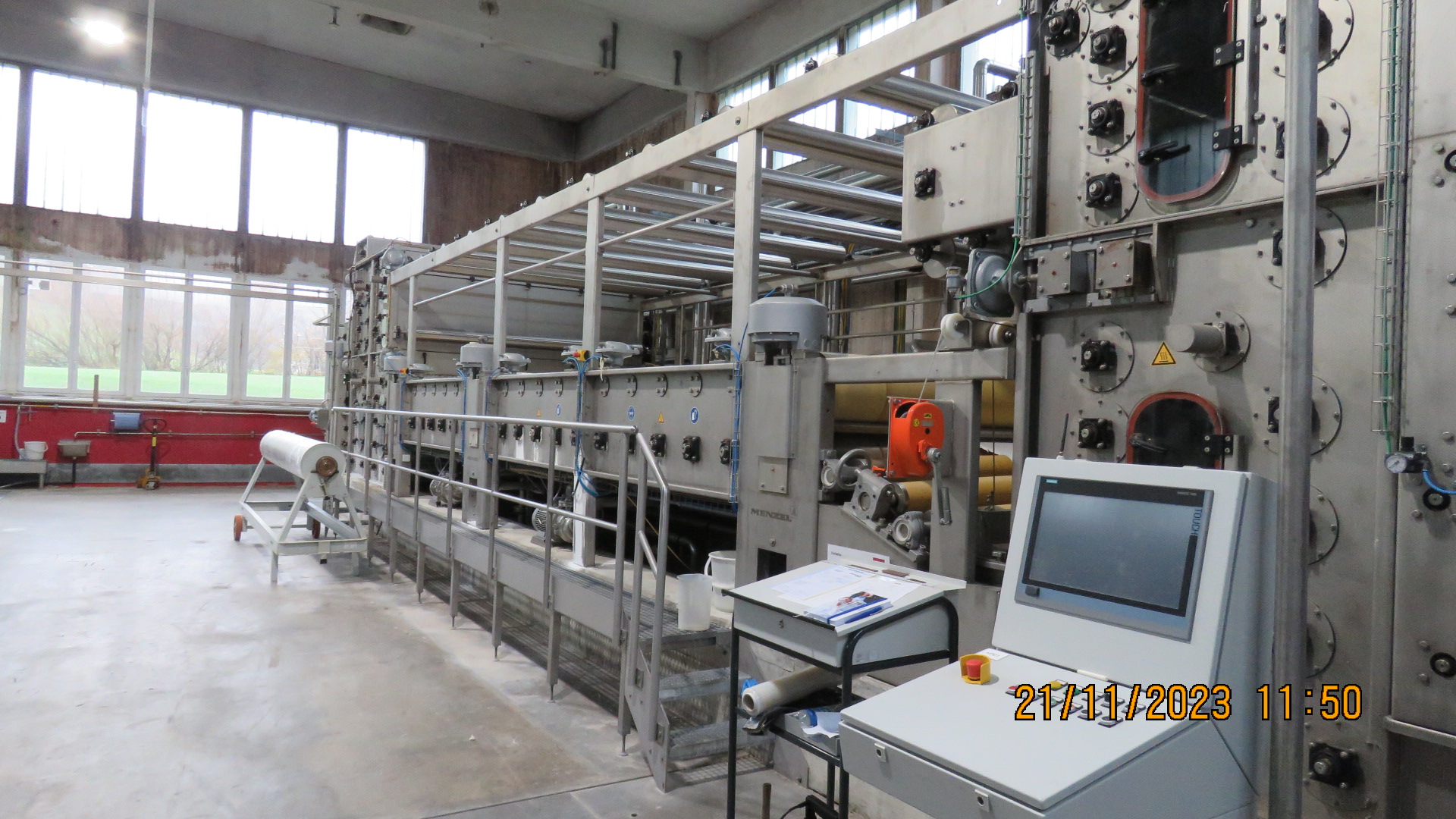

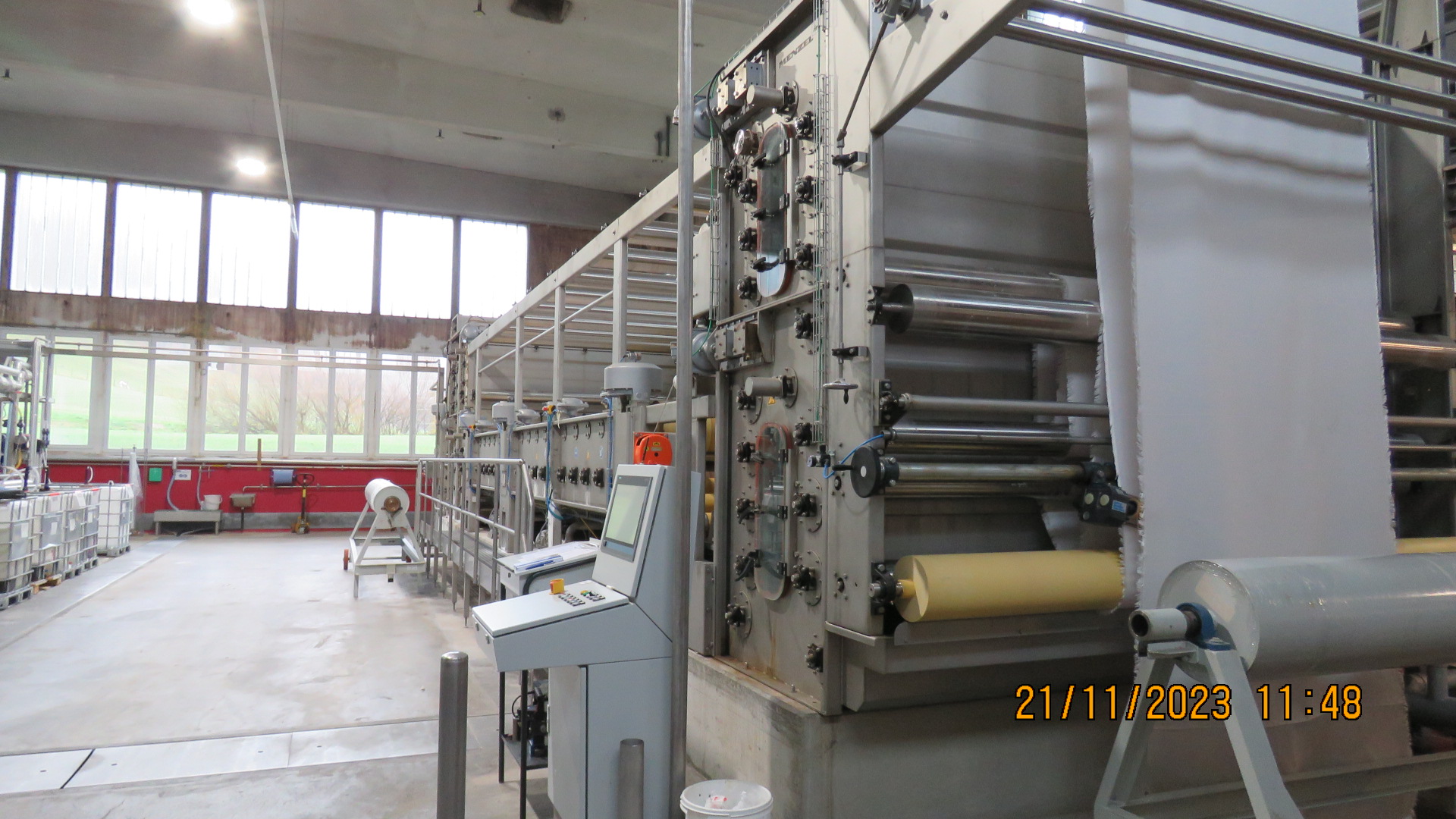

The line is designed for high-speed processing, with a minimum production speed of 5 m/min and a maximum production speed of 50 m/min, ensuring fast and reliable operation. The machine is in stopped condition on mill floor but is ready for reactivation with all connections intact.
